Garage Door Opener Repair in Dallas & the east metroplex

The opener is the smallest force in the system

A half or three quarter horsepower opener produces enough force to move a door that the springs have already balanced. It is not a lifting device. When the counterbalance drifts out of range, the opener silently absorbs the difference on every cycle, and the components that fail are the ones in the force path: the plastic drive gear, the trolley, the opener arm, and the top section where the arm attaches. This is why the balance test comes before any opener diagnosis. Replacing an opener on an unbalanced door is a repair with a timer on it.

Chain, belt, and screw drives fail differently

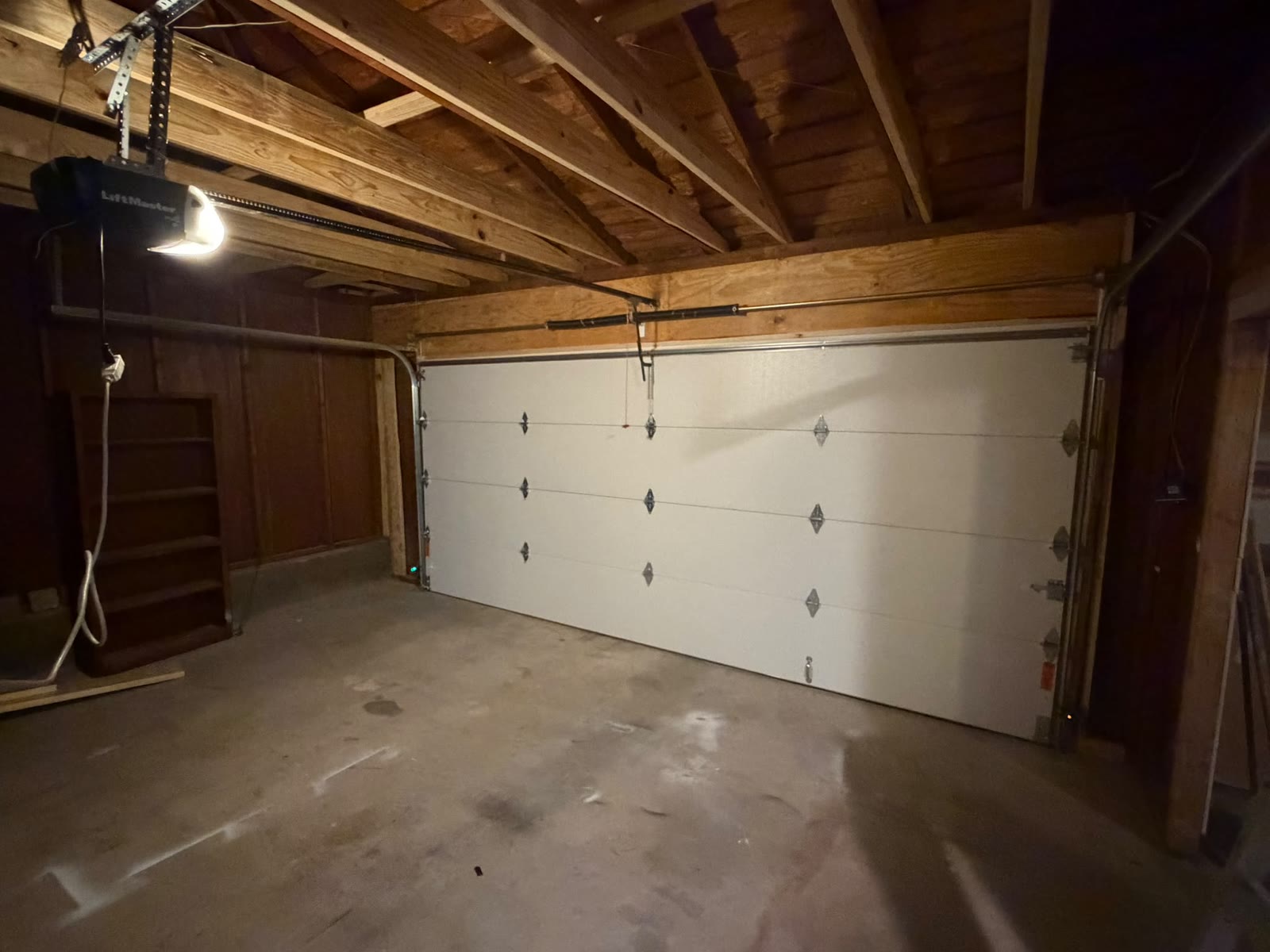

A chain drive is the most common and the most tolerant of heat, but it is also the loudest, and its nylon worm gear is the classic wear item. A belt drive replaces the chain with a reinforced rubber belt and is meaningfully quieter, which matters when a bedroom sits above the garage; the drive gear is still a wear item. A screw drive moves the trolley along a threaded steel rod and needs its own specific lubricant on that rod, which many owners never apply, at which point the drive binds. Wall mounted jackshaft openers drive the torsion shaft directly, free the ceiling entirely, and are the practical choice for low headroom garages and for rooms above the garage.

Reading the fault from the behavior

The motor runs and the door does not move: drive gear, broken chain or belt, or a disconnected trolley. The motor hums and does nothing: usually a failed capacitor or a seized motor. Nothing at all happens from the remote or the wall button: power, logic board, or in some cases the wall control wiring shorted by a staple. The door goes down and immediately reverses: photo eyes, close force, or close limit. The door opens partway and stops: open limit or an obstruction the force setting is detecting. The door closes but the light does not come on and the unit beeps: on newer units this is battery backup status rather than a fault at all.

Photo eyes are the fault we are called about most and the fastest to fix

Two sensors face each other across the opening within six inches of the floor. One transmits an infrared beam, the other receives it, and interrupting that beam reverses a closing door. They go wrong in ordinary ways: a bracket knocked by a bicycle, a lens filmed over with dust, a spider building across the aperture, a bump that leaves the sending unit pointing slightly off axis, and low winter sun coming through the open door and saturating the receiver. Most units indicate the state of the eyes with steady and blinking LEDs, and a blinking sensor LED means the pair is not seeing each other. Bypassing them, which some previous repairs have done with a jumper, defeats the only device that would stop the door on a child or a pet.

Travel limits and force settings, and why creeping the force up is the wrong move

Travel limits tell the opener where the floor and the fully open position are. Force settings tell it how much resistance is normal on the way there. When a door starts reversing off the floor, the tempting fix is to increase close force until it stops doing that. That works, and it also removes the protection that stops the door on an obstruction, because the opener can no longer distinguish an obstacle from the resistance it has been told to expect. Correct practice is to find the resistance and remove it, then set the force to the minimum that runs the door reliably, then verify the auto reverse against a solid object on the floor.

When replacement is genuinely the better decision

There are three clear cases. First, a unit old enough to lack photo eye reversal entirely; the safety gap outweighs any repair. Second, a failed logic board on a unit whose board is discontinued or costs a substantial fraction of a new opener. Third, a motor or gearbox failure on a unit already past fifteen years, where the remaining components are all near the same point in their lives. Outside those three, repair usually wins. Modern replacements do add real capability worth considering: DC motors with soft start and stop, battery backup that keeps the door working through an outage, rolling code security, and quieter belt drives.
